PA-1000

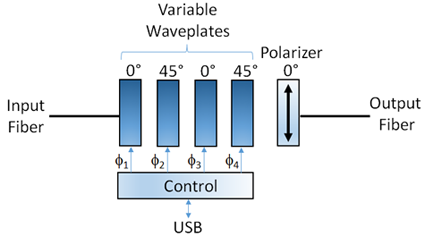

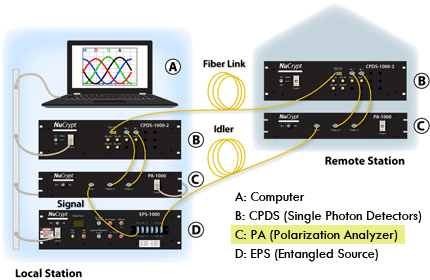

The PA-1000 is a computer-controlled fiber coupled polarization analyzer, consisting of a calibrated polarization controller followed by either a linear polarizer or a polarization beam splitter. Four or more variable waveplates with their optical axes oriented at 45˚ angles with respect to each other perform the polarization control. It is typically used to select the desired basis state when measuring polarization entangled states of light. The PA-1000 can operate a stand-alone device that is controlled via a USB port, or it can be integrated with additional equipment such as the NuCrypt CPDS-1000 detection system and NuCrypt Quantum System Control Software to enable automated quantum measurements like two-photon interference (TPI) fringes and quantum state tomographies (QST).
Basic Features
|
Product Specifications
| Attribute | Value | Units | Comments |
|---|---|---|---|
| Repeatability | ±2 | degrees | On Poincaré Sphere |
| Reconfiguration Time | 10 | ms | ±2 of final value |
| Insertion Loss | 1 | dB | C-band operation with linear polarizer [PBS version: 1.5 dB] |
| Wavelength Range | 1525-1565 | nm | ±1˚ typical repeatability |
| Wavelength Range (broad band) | 1290−1610 | nm | ±2˚ repeatability; Loss minimized in C band (O band by request) |
| Phase Control | 0−360 | degrees | <1˚ resolution |
| Form Factor | 2 | U | 2U 19" rack mountable box |
Typical Applications
|
Product Photo & Diagram
 |
 |
